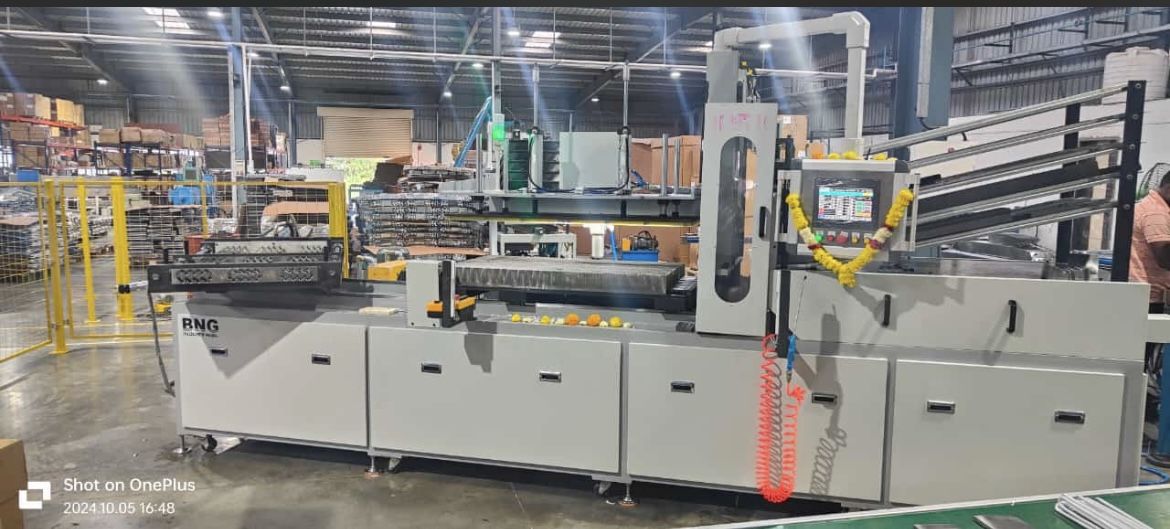

Automatic Fin Insertion Machine

Aluminum tube parameters:
a.) Material grade of aluminum tube: 1070/1060/1050/1100, state "0";
b.) Aluminum tube material specifications: nominal outer diameter of φ 8mm,7mm, 6.35mm
c.) Aluminum tube elbow radius: R11mm;
d.) Nominal wall thickness of aluminum tube: 0.6mm-1mm;

Fin parameters:
a.) Fin material grade: 1070/1060/1050/1100/3102, state "0" state;
b.) Fin width: 50mm, 60mm, 75mm; Fin length: 38.1mm-533.4mm (see product drawing)
c.) Fin thickness: 0.13mm-0.2mm;
d.) Fin types: 1-5 kinds;
